Celestion 15" buyout and SEOS12/DNA360

Discussion in 'DIY Speakers and Subwoofers' started by BillWaslo, May 9, 2013.

  1. absolootbs

    absolootbs Just joined the party

    Joined:
    Feb 1, 2013
    Messages:
    9
    Likes Received:
    0
    Wow, Erich's out of dna-350s and theres less than 10 buyout woofers left at parts express despite the fact that there were a couple hundred just a few weeks ago. this design sure did get really popular really quickly.

  2. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    daaaaaaaaaaaaang, Glad I ordered mine last monday when I did. tested all 3 drivers out by and they're working fine. phew. now just to build these suckers


    looks like they're down to 7 right now. almost tempted to grab a couple extra as backups in case of a blown driver down the road

  3. absolootbs

    absolootbs Just joined the party

    Joined:
    Feb 1, 2013
    Messages:
    9
    Likes Received:
    0
    thats exactly what i did yesterday - picked up one more, to go with the three i already have. figured that way i have an extra in case anything happens to one, and/or i can turn my l/c/r into two pairs if i ever need to repurpose or get rid of them.

    1 left!!!!!!!

  4. tuxedocivic

    tuxedocivic Well-Known Member

    Joined:
    May 24, 2012
    Messages:
    413
    Likes Received:
    1
    Location:
    Ladysmith, BC
    Wow, they were sitting there collecting dust until this design came out. I guess I gotta change my template recommendation email thingy ;D Lately when someone posts, "please recommend a SEOS design" I say "Cheap Thrill is the best bang for the buck right now hands down". Well now I actually have to think about the answer :eek:

  5. BillWaslo

    BillWaslo Well-Known Member

    Joined:
    Mar 17, 2012
    Messages:
    367
    Likes Received:
    7
    Location:
    Portland OR
    It might take it a notch down on the bang per buck (bpb) competition, but I think the Celestion TF1525 will work in there, too. Not as much Xmax, though. Oh, and almost twice the $. Still, compared other 100buck drivers, it doesn't look too bad.

  6. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    would it be a drop in replacement with the same xover or would that have to be re-worked? (just curious in case for some whacked reason I blow a driver or something down the road

  7. 210flyer

    210flyer Just joined the party

    Joined:
    May 27, 2013
    Messages:
    42
    Likes Received:
    0
    I've created a Sketchup drawing of a 2.5 ft^3 enclosure modeled after the 2.0 ft^3 offered on the site. I haven't built a box using this drawing, so I can't promise the driver clearance will work. If anyone wants to build a box with these plans, they are available at AVS Forums (the file exceeds this forum's size limits). If anyone uses these plans and encounters a problem, I'll update the drawing, and offer my condolences...

    Hopefully Erich will have a flatpack out soon and these plans won't be needed.

  8. joebuddyguy

    joebuddyguy Just joined the party

    Joined:
    Jun 10, 2013
    Messages:
    15
    Likes Received:
    0
    Location:
    London Ontario
    I've finally finished 2 of these for my LCR (still 1 more to go) and all I can say is holy crap these are great! I did some quick listening of them on a crappy boombox stereo (the kind that has removable speakers and speaker terminals on it) and I'm amazed at the performance. A big thanks to Bill and Erich for making these happen! It will be very difficult to buy a retail set of speakers ever again. I've currently got a 7.1 set of Niles PHD42 and I'm in the process of trying to sell them to pay for surrounds kits....I'm leaning towards the MTG EOS-8 or the Fusion8's....does anyone know if there is a plan to add the updated EOS-8 Karma surrounds as a kit? I'd rather not butcher up my own baffles and will definitely go the flat pack route for the surrounds (my non-existent carpentry skills made constructing speaker cabs take a looong time). I'll take some better pictures of my finished Cheap thrills....used Duratex and I think they turned out great.

  9. joebuddyguy

    joebuddyguy Just joined the party

    Joined:
    Jun 10, 2013
    Messages:
    15
    Likes Received:
    0
    Location:
    London Ontario

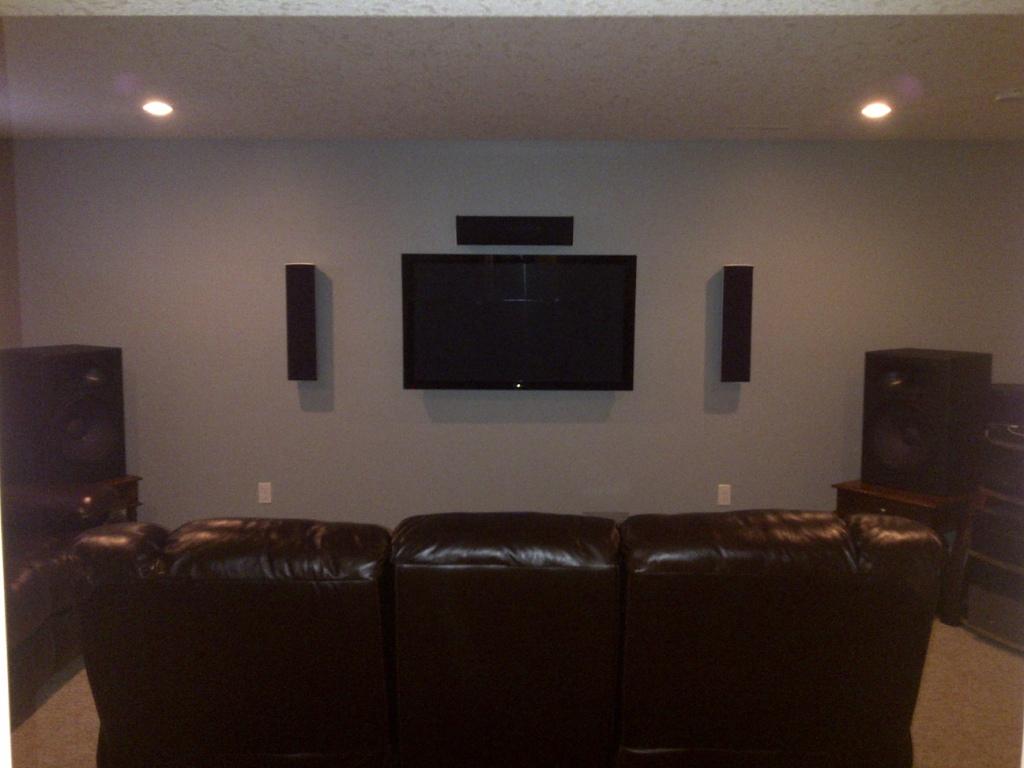

    A few pics


    Attached Files:

    • ht2.jpg
      File size:
      98.4 KB
      Views:
      752
  10. joebuddyguy

    joebuddyguy Just joined the party

    Joined:
    Jun 10, 2013
    Messages:
    15
    Likes Received:
    0
    Location:
    London Ontario

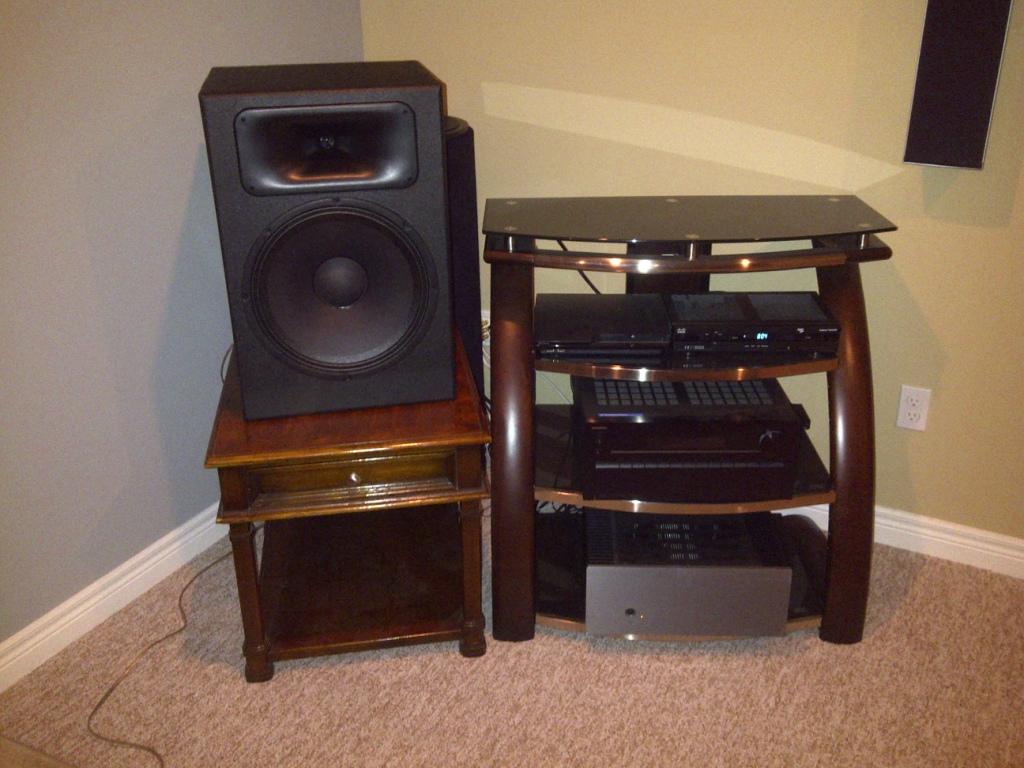

    more


    Attached Files:

    • ht3.jpg
      File size:
      94 KB
      Views:
      725
  11. joebuddyguy

    joebuddyguy Just joined the party

    Joined:
    Jun 10, 2013
    Messages:
    15
    Likes Received:
    0
    Location:
    London Ontario

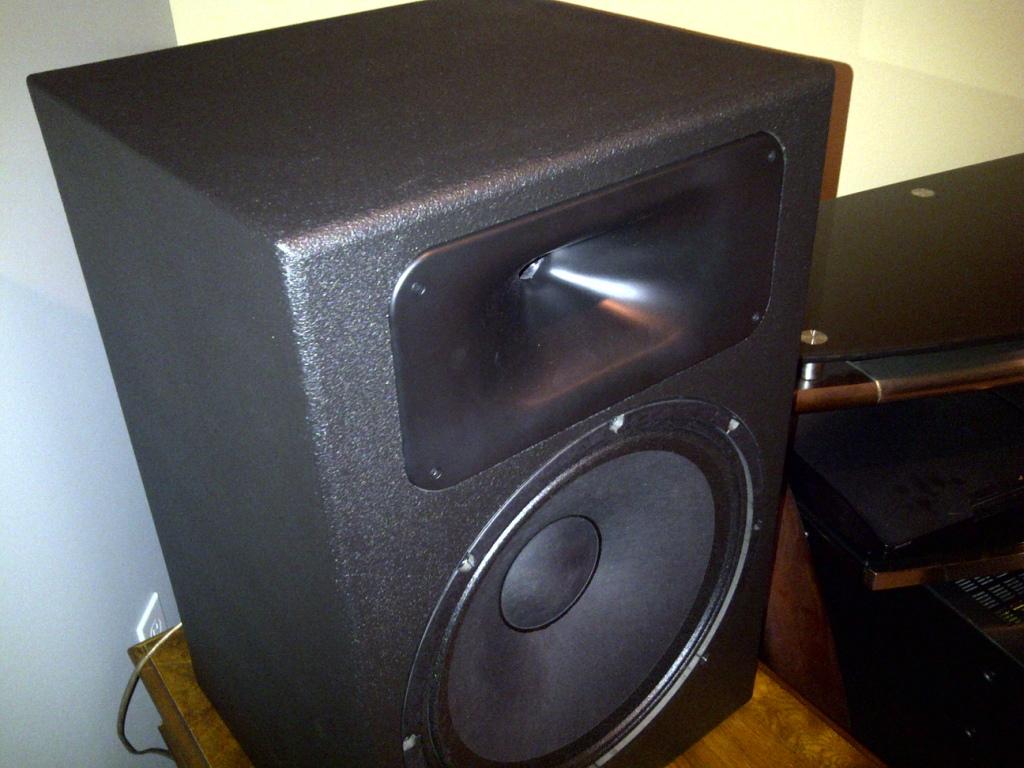

    sorry for the crappy quality...needed to use my cell phone


    Attached Files:

    • ht1.jpg
      File size:
      68.4 KB
      Views:
      702
  12. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    I'm about to start the crossovers for the Cheap thrills in a day or so. what's the best adhesive or way to "tie down" the resistors, inductors etc to the board? will hot glue work??? if the pieces get too hot I could see that melting the glue. what about zip ties? or silicone?

  13. joebuddyguy

    joebuddyguy Just joined the party

    Joined:
    Jun 10, 2013
    Messages:
    15
    Likes Received:
    0
    Location:
    London Ontario
    Hey Wormraper, most people use hot glue I think. That's what I used and it works well, and is easier than drilling the crossover board for zipties.

  14. 210flyer

    210flyer Just joined the party

    Joined:
    May 27, 2013
    Messages:
    42
    Likes Received:
    0
    At a minimum, I would suggest you use zip ties for the inductors and larger capacitors. You don't want these items to come loose and potentially cause damage or short against another component. Ideally, I would recommend drilling your board and making all the connections underneath. I think it makes for a neater board and the solder connections will serve as a positive retention for everything except the inductors, which will need zip ties or screws.

    Here is a link to my crossover layout before I hot glued everything to prevent any buzzing inside the enclosure.

  15. nikkoluvr

    nikkoluvr Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    8
    Likes Received:
    0
    Hi, does anyone know when the DNA-350's will be back in stock? Looks like the "Cheap Thrill" sort of cleaned them out.
    thanks,
    nikkoluvr

  16. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    Eric mentioned last time I talked to him that he probably WASN't going to restock them. go with the 360 instead

  17. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    here's my first attempt at a crossover. can you guys look over it to make sure I didn't f anything up before testing and soldering?


    (I made it a HUGE pic so that you can zoom in over every part)


    [​IMG]

  18. Matt Grant

    Matt Grant Administrator

    Joined:
    Jun 5, 2012
    Messages:
    834
    Likes Received:
    240
    Location:
    Millbrook, IL
    I think it looks good, connections are correct as far as I can tell.

  19. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    sweet, thanks mtg90... I assume there's no reverse polarity on the DNA 350 or anything whacky like that? just plug + to + and - to - on the woofer and tweeter?

  20. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    quick question. with my room placement I CAN NOT put these with the wave guides at ear level. (my roof is too narrow). they HAVE to go on top of my THT subs ... so about 3 feet up in the air is where the bottom will be. is that gonna be a bit too high ??? or should I flip them upside down so the waveguide is at the 3 foot point instead of the woofer

  21. HopefulFred

    HopefulFred Just joined the party

    Joined:
    Jan 23, 2013
    Messages:
    54
    Likes Received:
    0
    Flipping them upside down is fine, IMO, but whatever you do, keep in mind that the designed lobe or whatever it's properly called for this speaker is not directly pointing out from the baffle, but up some. Check the first couple posts of this thread, but iirc the measured response sweet spot was out 30" and up 6", so ideally they should be tipped down below the listener if right-side-up.

  22. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    ahhh, so tipping them upside down would help since my head is JUST under where the waveguide would be upside down. so they'd be shooting down slightly

  23. 210flyer

    210flyer Just joined the party

    Joined:
    May 27, 2013
    Messages:
    42
    Likes Received:
    0
    Fred is right about the lobe, I recall the same thing. Why not just tip them downward more to aim them at the listener rather than placing them upside down?

  24. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0
    well, thanks for the help guys, I got my braces all installed. install the crossovers tomorrow afternoon and then stuffing the cabinet. I know I asked this before and Eric said to try one pillow per cabinet... unfortunately walmart was out of their super cheap pillows and I had to get a 4 lb bag of fiberfill from the sewing section. is 4 lbs enough for the cab or hsould I get more...maybe less??? I forgot to weight one of the regular pillows at walmart to get an estimation of how much to stuff in the cab.

  25. wormraper

    wormraper Just joined the party

    Joined:
    Dec 16, 2012
    Messages:
    37
    Likes Received:
    0



    ok, weird issue. my crossovers are fine. I got them working a week ago. my partner is just finishing HIS crossovers and two of them work fine. the the third is not... well at least the woofer isn't (don't worry its not the woofer, it's the same woofer that works on all the other crossover boards). they are wired exactly like the picture above. spent two hours making sure every wire was identical. the weird thing is that if he pulls the 3 resistors that ground to the speaker cable in the picture from touching the cable... the woofer starts working, but if he has those 3 resistors attached the woofer doesn't work.. any ideas?
